50/125 vs 62.5/125 Multimode Fiber: Compatibility and Migration

1. 50/125 vs 62.5/125: The Short Answer

Choose 50/125 µm multimode — OM3, OM4 or OM5 — for new builds and for any link you plan to run at 10G or above. Keep 62.5/125 µm (OM1) only where existing OM1-only electronics are still in service and are not being replaced. The two grades are not interchangeable on one link: both use a 125 µm cladding, so the same LC, SC and ST hardware fits either cable, but a 62.5 µm core mated to a 50 µm core loses light at the junction.

Multimode compatibility comes down to three things agreeing — the core diameter (50 µm versus 62.5 µm), the modal-bandwidth grade the transceivers were specified against (OM1 through OM5), and the connector and adapter interface in the patch field. Get the first two right and the third becomes a hardware choice; mismatch the core diameter and the link will still light up while running outside its loss budget.

Migration from 62.5/125 to 50/125 is therefore a cabling-and-optics job rather than a protocol change: fiber, patch cords, panel adapters and transceivers move together, link by link. That is why most OM1-to-OM3/OM4 conversions end up scheduled around an equipment refresh rather than around the cable itself.

2. Which Should You Choose? Four Scenarios

New build or full cable refresh → 50/125, with OM3 as the floor and OM4/OM5 where the run plan or headroom requirement calls for it. A 50 µm core is the current mainstream: OM3 to OM5 transceivers, patch cords and hardware are all built around it, and it is the multimode grade suppliers and integrators hold in depth.

Working OM1 plant → stay on 62.5/125 until the electronics change. Replacing a functioning OM1 backbone buys no extra speed while the switches and media converters at either end remain OM1-only. Patch what is installed, keep grade-matched 62.5/125 patch cords on hand for maintenance, and time the migration to the next equipment refresh.

Mixed cabinets or a site carrying both grades → segment by link. Label every trunk and patch field with its grade, keep 50/125 and 62.5/125 terminations on separate panels or clearly separated fields, and never bridge the two with a single patch cord — that junction is where insertion loss appears.

62.5/125 to 50/125 upgrade path → the cable itself has to change; schedule the panels and optics in the same window. Re-terminating an OM1 trunk with new connectors does not convert it to 50 µm — the core size is fixed in the glass, so a grade upgrade means new cable. Where the trunk is being replaced anyway, plan the connector and fiber optic patch panel change, and the matching transceiver swap, into the same outage rather than leaving the plant on mixed grades.

3. What Do the Numbers 50/125 and 62.5/125 Mean?

These numbers refer to the core and cladding diameter of a multimode fiber optic cable, measured in microns (µm):

• 50/125 μm = 50-micron core, 125-micron cladding
• 62.5/125 μm = 62.5-micron core, 125-micron cladding

The core is where the light travels through the cable — it's essentially the highway for data. The cladding keeps the light signals contained within the core, helping them reflect properly and maintain signal integrity.

So why does this small difference in core size matter? Because it changes how the light travels and how fast it can move — especially over longer distances or higher speeds. For a complete walk-through of how these sizing tiers fit inside the larger multimode lineup, see our overview of the difference between OM1, OM2, OM3, and OM4.

4. How Do They Perform? Speed and Bandwidth Differences

Here's where it gets practical: the smaller 50-micron core actually performs better at high speeds and longer distances than the older 62.5-micron type.

So if you're working with 10G or higher, or want to avoid replacing cables in a few years, 50/125 is the better bet. Curious how far the latest OM4 runs can really stretch? Read how far OM4 multimode fiber can transmit.

5. Where Each Type Works Best?

Still not sure which one you need? Here is the short checklist — the reasoning behind each line is in §2.

Use 50/125 Fiber If:

• You're cabling an office LAN or campus building
• You want 10G, 40G, or even 100G connections
• You're setting up a data center or server room
• You need longer cable runs within a building
• You want to future-proof your setup

Use 62.5/125 Fiber If:

• You're maintaining an older system that already uses it
• Your budget is tight and you're only running low-speed, short-distance connections
• You have equipment that only accepts OM1 fiber

6. Can You Mix 50/125 and 62.5/125 Fibers?

Short answer: you shouldn't. Even though the outer size (cladding) is the same (125 µm), the core sizes differ. Connecting 62.5/125 fiber to 50/125 fiber will cause insertion loss — meaning you lose data signal strength.

Mixing them may still work for very short distances, but it's not reliable or recommended, especially for commercial use or faster networks.

7. Which Fiber Type Is More Common Today?

The industry has shifted toward 50/125 μm fiber, especially OM3, OM4, and the newer OM5 standards. These types are used in:

• Data centers
• High-speed office LANs
• Cloud computing environments
• Streaming and gaming networks

On the other hand, 62.5/125 μm (also known as OM1) was more common in the 1990s and early 2000s. It's considered legacy fiber today, and while it's still available, it's not recommended for new builds. For a deeper look at whether the in-between OM2 grade still has a role, see is OM2 obsolete?

8. How to Tell Them Apart Before You Buy

If you're buying fiber cables online or sorting through a box of network gear, how do you tell which is which?

Look for:

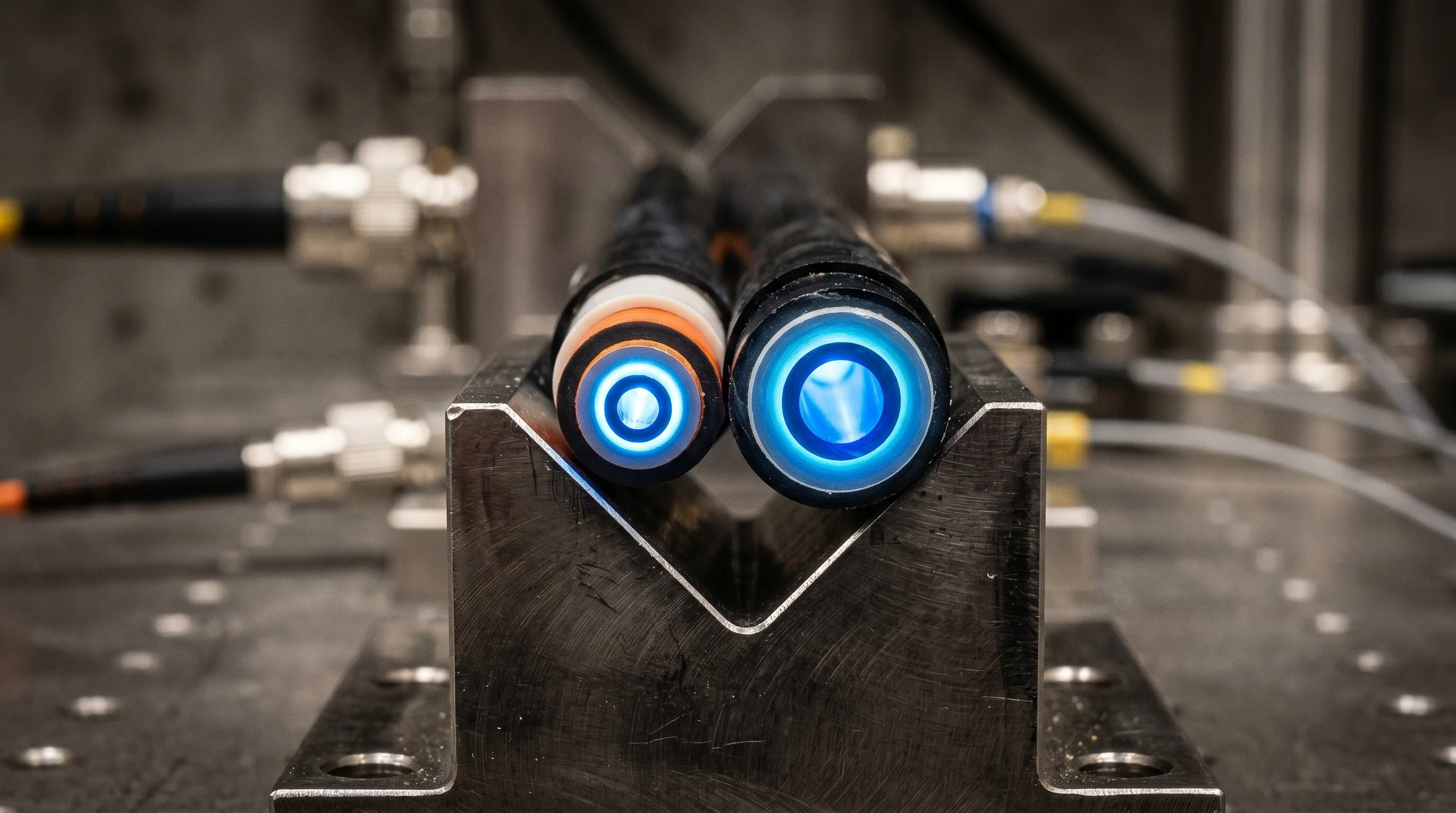

• Jacket color: 50/125 OM3/OM4 is usually aqua or violet (OM4+); 62.5/125 OM1 is usually orange
• Labeling: Most cables are clearly marked along the jacket with specs like "OM3 50/125"
• Connector type: While both use SC/LC/MTP types, the cable core size behind them matters

Pro tip: trusted vendors like TTI Fiber clearly label their cables by fiber type, so you always know what you're getting. Browse our fiber optic patch cord lineup for both 50/125 and 62.5/125 options with clearly printed jacket markings, and cross-reference with sibling guides such as OM1 vs OM2 fiber optic cables before placing a bulk order.

9. Which Is More Affordable in the Long Run?

While 62.5/125 fiber might be cheaper upfront (due to older stock and simpler performance), it lacks the bandwidth to support modern needs. That means you might need to upgrade sooner — which costs more in the long run.

50/125 fiber, especially OM3 and OM4, may cost slightly more now but:

• Supports higher speeds
• Reduces the number of cables needed
• Works with modern networking hardware
• Is more widely available

So unless you're maintaining legacy gear, 50/125 is a smarter investment.

10. Frequently Asked Questions (FAQ)

Q1: Can I use 50/125 for 1G Ethernet?

Yes! It works perfectly and supports much higher speeds too.

Q2: Is 62.5/125 fiber obsolete?

It's not obsolete, but it's outdated. Only use it if your existing hardware is limited to OM1.

Q3: Are both compatible with LC or SC connectors?

Yes, as long as the connector is built for the correct core size.

Q4: Will I lose signal if I mismatch fiber types?

Yes — especially if you're connecting a larger-core 62.5/125 cable to a smaller-core 50/125. You'll get high signal loss.

Q5: Can I upgrade from 62.5 to 50/125 fiber?

Yes — but the cable itself has to change as well. Re-terminating an OM1 trunk with new connectors does not convert it to 50 µm, because the core size is fixed in the glass, so budget for new cable along with the connectors, patch panels and transceivers. It's worth it if you're upgrading to 10G or more.

11. Where to Buy High-Quality 50/125 or 62.5/125 Fiber

When buying fiber, quality and clarity matter. That's why companies like TTI Fiber are trusted globally for their:

• Clearly labeled OM3/OM4/OM5 fiber cables
• High-performance patch cords, jumpers, and trunk cables
• Custom length and connector types
• Expert technical support for small and enterprise-level users

TTI Fiber serves both bulk commercial buyers and individual users looking for precision and performance. If you're shopping for 50/125 fiber to upgrade your office or home, our indoor fiber optic cable catalog and patch cord range are a great place to start.

12. 50/125 vs. 62.5/125 Quick Comparison Table

So, what's the difference between 50/125 and 62.5/125 fiber? It comes down to performance, compatibility, and long-term value.

• If you're upgrading or building a modern fiber network, go with 50/125.
• Only choose 62.5/125 if you're maintaining legacy equipment.

And remember, when in doubt — buy from a reputable source like TTI Fiber to ensure quality, labeling accuracy, and support. Learn more about our manufacturing background on the About TTI Fiber page, or explore real-world deployments in our guide to OM4 and OM5 fiber cable applications.
