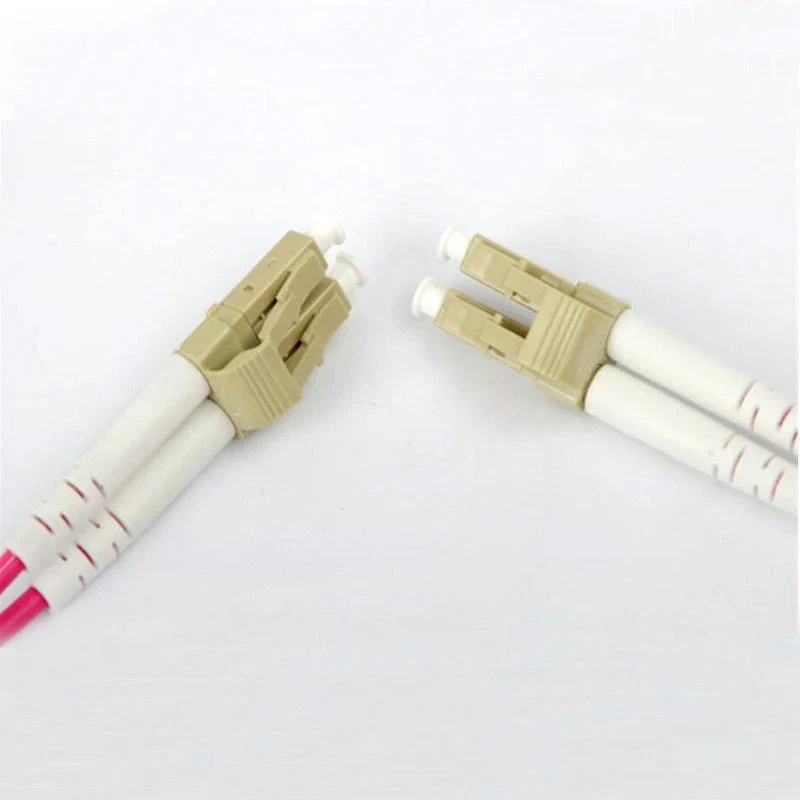

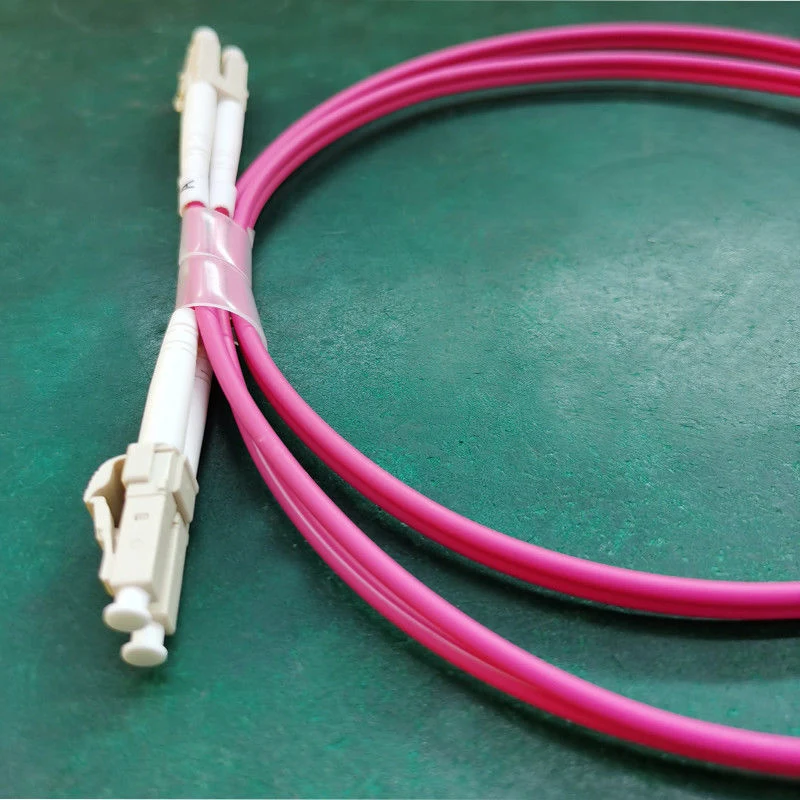

LC/UPC to LC/UPC OM4 Multimode 50/125μm DuplexFiber Optic Patch Cord
LC/UPC OM4 multimode 50/125μm duplex patch cord with aqua or violet jacket. High-performance laser-optimized fiber for 40G/100G data center applications.
Technical Specifications
Quote checklist
Confirm the configuration for LC-LC OM4 Patch Cord
Your quote is faster and more accurate when the required quantity, installation conditions, and the configuration below are included with the request.
- Connector Type
- LC/UPC – LC/UPC
- Fiber Mode
- Multimode OM4 (50/125μm)
- Fiber Count
- 2 Fibers (Duplex)
- Cable Diameter
- 2.0mm / 3.0mm
Engineered For Performance
40G/100G Data Center Ready
OM4 fiber with 4700 MHz·km bandwidth supports 40GBASE-SR4 up to 150m and 100GBASE-SR10, future-proofing data center multimode infrastructure.
Extended Reach Over OM3
Higher modal bandwidth delivers 40% greater reach than OM3 for 10G applications (550m vs 300m), reducing the need for costly single mode upgrades.
Premium End-Face Quality
3D interferometric testing on every connector ensures consistent geometry compliance for reliable, repeatable low-loss connections.
Typical Applications
High-Speed Data Centers
40G/100G spine-leaf architectures using parallel optics transceivers (QSFP+, QSFP28) for short-reach server-to-switch connections.
Enterprise Campus Backbone
Building backbone connections where multimode fiber provides cost-effective high-bandwidth links within campus distance limits.
Interested in this LC-LC OM4 Patch Cord?
Tell us your quantity, cable length, and any custom requirements. Our engineering team will respond with a detailed quote within 24 hours.
